Icom

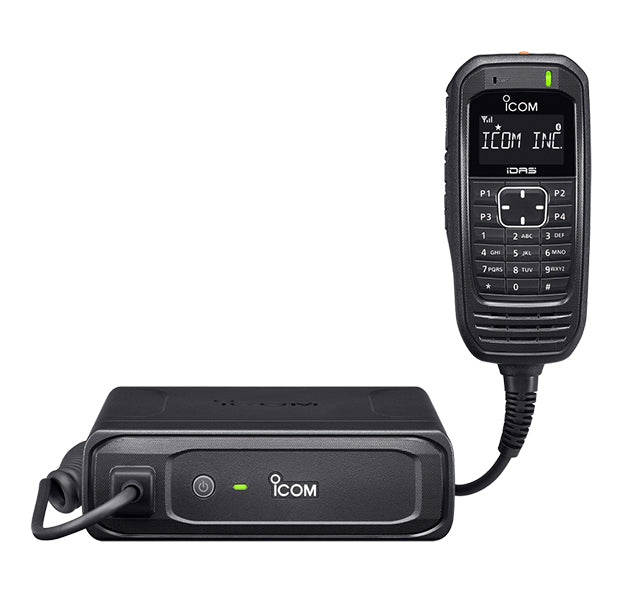

Icom IC-FX330D 25 Watt, Mobile Transceiver (Digital)

Icom IC-FX330D 25 Watt, Mobile Transceiver (Digital)

Regular price $1,100.00 AUD
Regular price Sale price $1,100.00 AUD
Sale Sold out
Tax included.
Style
  • Flexible Installation Using an Ethernet Cable Between the Main Unit and Commandmic™
  • Loud and Intelligible Audio Even in Noisy Environment
  • Input /Output Interface for External Devices with Optional D-SUB Accessory Cable
  • Dual Mode Operation – IDAS™ Digital Mode and Analogue FM Mode
  • 400 – 520 MHz Wide Frequency Coverage (IC-F6330D UHF version)
  • 136–174 MHz (IC-F5330D VHF version)
  • 128 Channels / 8 Zones
  • Two-piece configuration – Commandmic™ + black box main unit
  • Commandmic™ is powered from the main unit through an Ethernet cable* * Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied).

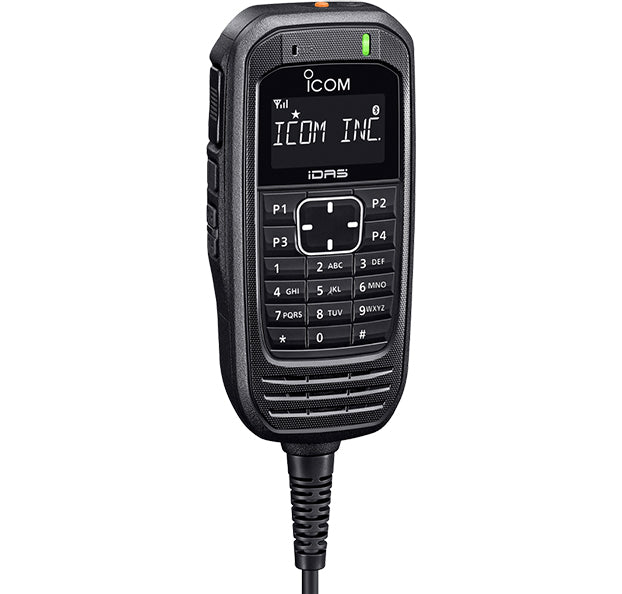

  • High contrast, wide viewing angle, black background display on the Commandmic™
  • 1700 mW (typical) audio output from the Commandmic™
  • MIL-STD-810 G shock, vibration, temperature and more
  • IPX4 water splash resistance for the Commandmic™
  • DTMF autodial memories capability

Operating Mode

  • NXDN™ conventional
  • NXDN™ Type-D single-site trunking
  • NXDN™ simulcast
  • NXDN™ multi-site conventional over IP network
  • Analogue mode

Digital Functions (Voice and Data)

  • PTT ID and ANI
  • Over-the-Air Alias (OAA) displays the caller’s name without programming
  • Individual, Group and All call
  • Late entry for Group call
  • Status call and Polling call
  • Short data messages
  • Call alert
  • Radio check (RX only)

Analogue Functions

  • CTCSS and DTCS tone
  • 2-Tone and 5-Tone
  • MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
    BIIS PTT ID transmission

Security and Safety

  • Digital voice scrambler
  • Emergency call and Lone worker
  • Remote monitor (RX)
  • Radio Kill, Stun and Revive (RX)

Scan Functions

  • Priority scan monitors one or two priority channels while scanning non-priority channels
  • Voting scan automatically selects the optimal repeater site

Hardware Features

  • Set an IP address for main unit and Commandmic™
  • GPS receiver connection with optional ACC cable
  • Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming*
    * No digital modulation “IN” w<ng accessory cables.

Flexible Installation with a PoE Switch and IP Network

  • Using a PoE (Power over Ethernet) switch (as the power supply to the microphone) and an IP network, you can easily install the IC-F5330D series into a building*. In this installation scenario, you don’t have to worry about the distance between the main unit and the Commandmic™. Also, as the main (RF) unit can be installed close to the antenna, cable loss is kept to a minimum.
    * In-building usage is not available in some countries.
View full details
