Icom IC-F5400/F6400 series mobile units
Icom IC-F5400/F6400 series mobile units
Couldn't load pickup availability
VHF AND UHF DIGITAL TRANSCEIVERS

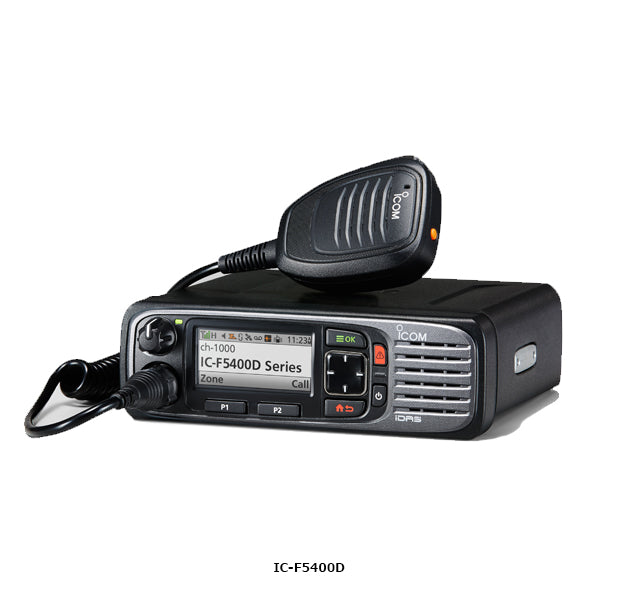

IC-F5400D
IC-F6400D
Series
IDAS™ Takes You To a New Level of “Smart”
Icom’s Next Generation IDAS™ Mobiles
The F5400D Series is Icom's new flagship IDAS radios. Dozens of new features and functions are included, all in one new small form factor size. Features like SD Card, USB interface, and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, from the dimmest of light to the brightest sunshine. Icom is the choice when you want to take your communications to the next level.
General
| IC-F5400D/DS NXDN Version |
IC-F6400D/DS NXDN Version |
||
|---|---|---|---|
| IC-F5400DP/DPS dPMR Version |
IC-F6400DP/DPS dPMR Version |
||
| Frequency range (NXDN) (* Depending on version) |
136–174MHz | 380–470MHz 450–512MHz |
|
| Frequency range (dPMR) | 136–174MHz | 380–470MHz | |
| Number of channels | 1024 channels /128 zones 4000 channels /128 zones (Option*1 ) 99 channels (7 Segment display type)*2 |
||
| Type of emission (NXDN) (* Depending on version) |
16K0F3E*3, 14K0F3E, 11K0F3E, 8K50F3E, 8K30F1E/D, 4K00F1E/D | ||
| Type of emission (dPMR) (* Depending on version) |
16K0F3E*3 , 14K0F3E, 8K50F3E, 4K00F1E/D | ||
| Power supply requirement | 13.6 V DC nominal (USA/EXP), 13.2 V DC nominal (EUR) |
||
| Current drain (approx.) | Tx (High) | 9.0 A typ. (at 50 W) 5.0 A typ. (at 25 W) |
8.8 A typ. (at 45 W) 5.0 A typ. (at 25 W) |
| Rx (Max./Standby) | 0.9 A typ. (Internal SP)/ 370 mA typ. |
0.8 A typ. (Internal SP)/ 270 mA typ. |
|
| Antenna impedance | 50Ω | ||
| Operating temperature range |
–30 °C to +60 °C; –22 °F to +140 °F |
||
| Dimensions (W×H×D) (Projections not included) |
174 × 55 × 150 mm; 6.9 × 2.2 × 5.9 in | ||
| Weight (approx.) | 1.5 kg; 3.3 lb | ||
*1 Optional license key (ISL-CHEX) required.
*2 IC-F5400DS/F6400DS/F5400DPS/F6400DPS: Due to the segment display, channel indication is possible for up to 99 selected channels out of 1024.
*3 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
DVN: Digital Very Narrow (6.25 kHz), DN: Digital Narrow (12.5 kHz). DN is for NXDN version only.
Transmitter
| IC-F5400D/DS NXDN Version |
IC-F6400D/DS NXDN Version |
||
|---|---|---|---|
| IC-F5400DP/DPS dPMR Version |
IC-F6400DP/DPS dPMR Version |
||
| Output power (Hi, L2, L1) (Depending on version) |
50 W, 25 W, 5 W 25 W, 10 W, 5.8 W |
45 W, 25 W, 4.5 W 25 W, 10 W, 5.8 W |
|
| Frequency stability | ±1.0ppm | ||
| Spurious emissions | USA | 90 dB typ. | 80 dB typ. |
| EUR | 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) | ||
| FM Hum and noise (W/N) | 54/54 dB typ. | ||
| Audio harmonic distortion (AF 1kHz 40% deviation) |
0.5% typ. | ||
| FSK error | 1% typ. (DVN/DN) | ||
Receiver
| IC-F5400D/DS NXDN Version |
IC-F6400D/DS NXDN Version |
||
|---|---|---|---|
| IC-F5400DP/DPS dPMR Version |
IC-F6400DP/DPS dPMR Version |
||
| Sensitivity | 12dB SINAD | 0.22 μV typ. | 0.25 μV typ. |
| 20 dB SINAD (W/N) | –4.0/–4.0 dBμV emf typ. | ||
| 1% BER (DVN/DN) | –6.0/–5.0 dBμV emf typ. | ||
| Adjacent channel | (W/N) | 75/72 dB typ. | |
| (DVN/DN) | 65/68 dB typ. | ||
| Spurious response rejection | 85 dB typ. | ||
| Intermodulation rejection |
USA | 78 dB typ. | 75 dB typ. |
| EUR | 70 dB typ | 70 dB typ. | |
| DVN/DN | 70/70 dB typ. | 70/70 dB typ. | |
| Audio output power | Internal SP (With 12 Ω load) |
4.0 W typ. (at 5% distortion) | |
| External SP (With 8 Ω load) |
4.0 W typ. (at 5% distortion) | ||
Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation..
Function Comparison
|
|
IC-F5400D/DS IC-F6400D/DS NXDN Version |
IC-F5400DP/DPS IC-F6400DP/DPS dPMR Version |
|---|---|---|
| Operating type | ||
| NXDN Single-site Conventional | Yes | N/A |
| NXDN Multi-site Conventional | Yes | N/A |
| NXDN Type-D trunking (Single/multi) | Option (ISL-UGMTR) | N/A |
| 12.5 kHz digital mode | Yes | N/A |
| dPMR Mode 1/2 conventional | N/A | Yes |
| dPMR Mode 3 trunking | N/A | Option (ISL-UGMD3) |
| Analog mode | Yes | Yes |
| Analog/Digital mix mode | Yes | Yes |
| Digital functions | ||
| OTAP (Over-the-Air Programming) | Option (CS-OTPM1) |
Option (CS-OTPM1) |
| OAA (Over-the-Air Alias) | Yes | Yes |
| Transparent data mode | Yes | Yes |
| Status message | Yes | Yes |
| Short data message | Yes | Yes |
| Radio Stun/Revive/Kill | Yes | Yes |
| Remote monitor/Ambience listening | Yes | Yes |
| Analog functions | ||
| 2-Tone/5-Tone encoder/decoder | Yes | Yes |
| CTCSS/DTCS encoder/decoder | Yes | Yes |
| DTMF autodial/decoder | Yes | Yes |
| BIIS 1200 (MSK) | N/A | Yes |
| MDC functions | Yes | N/A |
| LTR™ trunking | Yes | N/A |
| Security | ||
| DES encryption (4 keys) | Yes | Yes |
| DES encryption (Up to 64 keys) | Option (UT-134) | Option (UT-134) |
| AES encryption | Option (UT-134 & ISL-AKAES) |
Option (UT-134 & ISL-AKAES) |
| OTAR (Over-the-Air Rekeying) | Option (CS-OTAR1) |
Option (CS-OTAR1) |
| Digital voice scrambler | Yes | Yes |
| Analog voice scrambler (Inversion) | Yes | Yes |
| Scan functions | ||
| Priority scan | Yes | Yes |
| Voting scan | Yes | Yes |
| Emergency functions | ||
| Lone worker function | Yes | Yes |
| Power OFF emergency | Yes | Yes |
| Voice/Audio functions | ||
| Voice announcement | Yes | Yes |
| VOX function | Yes | Yes |
| Voice recording/playback | Yes | Yes |
| Active noise canceller | Yes | Yes |
| TX/RX Audio equalizer | Yes | Yes |
| Hardwares | ||
| GPS receiver | Yes*1 | Yes*1 |
| Bluetooth® | Yes*2 | Yes*2 |
| microSD memory card slot | Yes | Yes |
| USB connector | Yes | Yes |
| Dual head controller | Option (For IC-F5400D/F6400D) |
Option (For IC-F5400DP/F6400DP) |
| COMMANDMIC™ | Option (For IC-F5400D/F6400D) |
Option (For IC-F5400DP/F6400DP) |
*1 Optional GPS antenna UX-241 is required separately. *2 Version without Bluetooth also available. Ask your Dealer for details.
