Victron

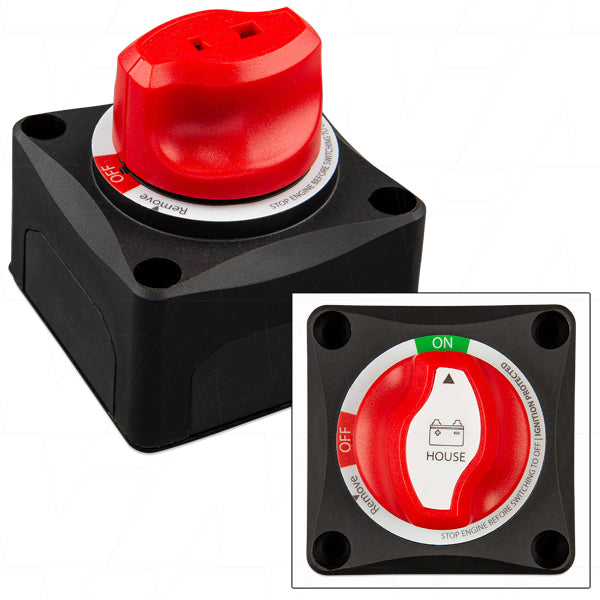

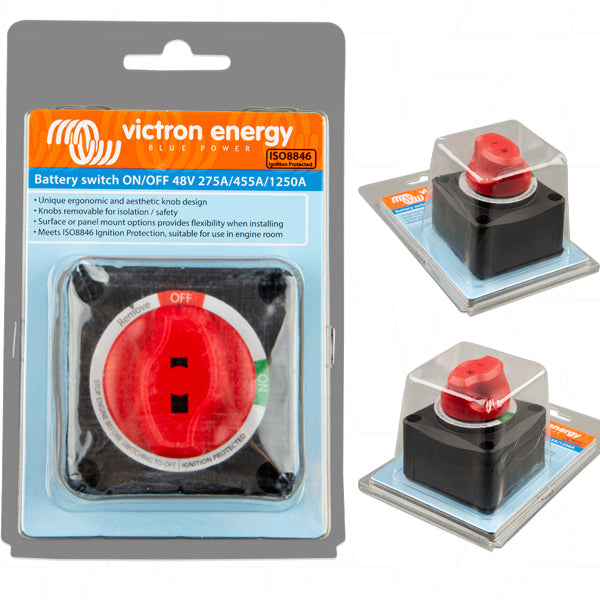

Victron Energy Battery isolation switch ON/OFF 275A VBS127010010
Victron Energy Battery isolation switch ON/OFF 275A VBS127010010
Regular price
$74.95 AUD
Regular price
Sale price
$74.95 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Victron Energy marine grade Battery Isolator Switch for systems up to 48VDC.
Featuring heavy duty terminals and robust plastic construction, it is an ideal product for use in Marine, RV and 4x4 applications where the switch requires external mounting or exposure to the elements.
Features:
- Unique ergonomic and aesthetic knob design
- Knobs removable for isolation / safety
- Surface or panel mounted options provides flexibility when installing
- Meets ISO8846 ignition protection, suitable for use in engine room
- Suitable for applications up to 48VDC
Battery Switch 270A
Max. cont. current | 275A |
One Minute Rating | 450A |
Cranking Rating | 1200A |
Voltage Rating | 48V |
Terminal material | Tin-plated copper |
Hex nut material | Tin-plated copper |
Terminal Diameter | 9.53mm |
Recommended torque | 8 N·m / 70 lbf·inch |
Base material | Glass fibre reinforced nylon |
Weight | 200 g |
Dimensions (hxwxd) | 69 x 69 x 73 mm |
Mounting | Surface or Rear Panel mount |
Ignition Protection | ISO8846 / SAE J1171 |
